Meet Torii, a new IoT botnet far more sophisticated than Mirai variants

The evolving IoT botnet is able to compromise an impressive array of architectures.


A new botnet which specializes in the compromise of Internet of Things (IoT) devices has been discovered which contains unprecedented levels of sophistication.

The botnet, dubbed Torii, is a cut above both the Mirai and QBot variants, according to researchers from Avast, as it possesses sophistication “a level above anything we have seen before.”

First discovered by a security researcher that goes under the Twitter handle VessOnSecurity, a strain of Torii was detected after hitting one of the researcher’s honeypots.



“The script is quite sophisticated, unlike the usual Mirai crap,” Vess tweeted. “The author is not your average script kiddie Mirai modder.”

Avast’s examination of the botnet revealed that Torii has likely been developed by someone with a thorough understanding of how botnets operate, rather than taking the bolt-on approach we have seen through recent Mirai variants, made possible after the public release of the IoT botnet’s source code in 2016.

The security firm says that Torii differs not only in terms of sophistication but also the variety of “advanced techniques” it uses.

“[Torii] comes with a quite rich set of features for exfiltration of (sensitive) information, modular architecture capable of fetching and executing other commands and executables and all of it via multiple layers of encrypted communication,” Avast says.

The botnet, believed to have been in operation since 2017, also has targeting capabilities not often seen in botnet variants. The system is able to infect architectures including MIPS, ARM, x86, x64, PowerPC, and SuperH, among others.

The discovery of the botnet was based on Telnet attacks emerging from Tor exit nodes. The botnet is able to take advantage of the use of weak credentials in IoT devices to compromise systems before executing a shell script which attempts to detect the architecture of a target device, before downloading an appropriate malware payload.

Torii will utilize a variety of commands, “wget”, “ftpget”, “ftp”, “busybox wget,” or “busybox ftpget,” to ensure payload delivery.

If binaries cannot be downloaded via HTTP, the botnet will use the FTP protocol. In the latter case, the botnet will use credentials embedded in the shell script to connect to an FTP server via an IP which is still active at the time of writing.

The binaries are droppers for the second payload, both of which are persistent.

Torii uses at least six methods to maintain persistence on a compromised device and runs all of them at the same time:

  • Automatic execution via injected code into ~\.bashrc
  • Automatic execution via “@reboot” clause in crontab
  • Automatic execution as a “System Daemon” service via systemd
  • Automatic execution via /etc/init and PATH. Once again, it calls itself “System Daemon”
  • Automatic execution via modification of the SELinux Policy Management
  • Automatic execution via /etc/inittab

The second-stage payload then executes. This is the main botnet which is able to connect to the operator’s command-and-control (C2) server — of which at least three addresses are in operation — exfiltrate data, encrypt communication, and utilize anti-debugging techniques.

Torii communicates with its C2 via TCP port 443, however, Avast considers this “as a deception” as the TLS protocol is not in use. Rather, the botnet “takes advantage of [the] common use of this port for HTTPS traffic.”

The botnet is sophisticated, but despite potentially being active since last year, does not behave like a standard botnet involved in Distributed Denial-of-Service (DDoS) attacks or cryptojacking, and its overall purpose is still a mystery.

At the time of discovery, VirusTotal did not flag up two of the botnet’s executables as malicious. However, at the time of writing, 19 antivirus engines now detect one of the files, whereas another is only detected by five engines.




Torii botnet – Not another Mirai variant

New, more sophisticated IoT botnet targets a wide range of devices



2018 has been a year where the Mirai and QBot variants just keep coming. Any script kiddie now can use the Mirai source code, make a few changes, give it a new Japanese-sounding name, and then release it as a new botnet.

Over the past week, we have been observing a new malware strain, which we call Torii, that differs from Mirai and other botnets we know of, particularly in the advanced techniques it uses.

Unlike the aforementioned IoT botnets, this one tries to be more stealthy and persistent once the device is compromised, and it does not (yet) do the usual stuff a botnet does like DDOS, attacking all the devices connected to the internet, or, of course, mining cryptocurrencies.

Instead, it comes with a quite rich set of features for exfiltration of (sensitive) information, modular architecture capable of fetching and executing other commands and executables and all of it via multiple layers of encrypted communication.

Furthermore, Torii can infect a wide range of devices and it provides support for a wide range of target architectures, including MIPS, ARM, x86, x64, PowerPC, SuperH, and others. Definitely, one of the largest sets we’ve seen so far.

As we’ve been digging into this strain, we’ve found indications that this operation has been running since December 2017, maybe even longer.

We would like to give credit to @VessOnSecurity, who actually tweeted about a sample of this strain hitting his telnet honeypot last week.

According to this security researcher, telnet attacks have been coming to his honeypot from Tor exit nodes, so we decided to name this botnet strain “Torii”.

In this post, we will describe what we know about this strain so far, how it is spreading, what are its stages, and we will depict some of its features.

The analysis is still ongoing and further findings will be included in blog post updates.


Now, let’s start with the infection vector.

Analysis of the initial shell script

The infection chain starts with a telnet attack on the weak credentials of targeted devices followed by execution of an initial shell script. This script looks quite different from typical scripts that IoT malware uses in that it is far more sophisticated.

The script initially tries to discover the architecture of the targeted device and then attempts to download the appropriate payload for that device.The list of architectures that Torii supports is quite impressive: including devices based on x86_64, x86, ARM, MIPS, Motorola 68k, SuperH, PPC – with various bit-width and endianness. This allows Torii to infect a wide range of devices running on these very common architectures.


The malware uses several commands to download binary payloads by executing the following commands: “wget”, “ftpget”, “ftp”, “busybox wget”, or “busybox ftpget”. It uses multiple commands to maximize the likelihood that it can deliver the payload.

If  the binaries cannot be downloaded via the HTTP protocol with “wget”  or “busybox wget” commands, it will use FTP.  When the FTP protocol is being used, it requires authentication. Credentials are nicely provided in the script:

Username:     u="<redacted>"
Password:      p="<redacted>"

Port for FTP:  po=404
IP of the FTP/HTTP server: (This IP is still alive at the time of writing this post.)

By connecting to the FTP server, there is quite a lot going on:


Full torii directory structure:


Among other things, the server contains logs from the NGINX and FTP servers, payload samples, a bash script that directs the infected devices to this very machine where the malware is hosted, and more. We’ll discuss what we found in these logs at the end of this post, but first let’s take a look at all the samples that are hosted there.

Analysis of the 1st stage payload (dropper)

Once the script determines which architecture the target device it is running on, it downloads and executes the appropriate binary from the server. All of these binary files are in the ELF file format. While analyzing these payloads, we found that they are all very similar and are “just” droppers of the second stage payload. What is notable is that they use several methods to make the second stage persistent on the target device. Let’s look deeper into the details below.

For our description, we’ll focus on the x86 sample with the SHA256 hash:


String Obfuscation

First we tried to de-obfuscate the sample, so we delved into some of the text strings to look for clues on how the malware works. The vast majority of text strings in the 1st and 2nd stage are encrypted by a simple XOR-based encryption and they are decrypted during runtime when a particular string is needed. You can use the following IDA Python script for decryption:

sea = ScreenEA()
max_size = 0xFF
for i in range(0x00, max_size):
   b = Byte(sea+i)
   decoded_byte = (b ^ (0xFEBCEADE >> 8 * (i % 4))) & 0xFF;
   if b == 0x00 or decoded_byte == 0x00:


e.g. F1 9A CE 91  BD C5 CF 9B B2 8C 93 9B A6 8F BC 00 → ‘/proc/self/exe’

Install 2nd Stage ELF File

The core functionality of the first stage is to install another ELF file, the second stage executable, which is contained within the first ELF file.

The file is installed into a pseudo-random location that is generated by combining a predefined location from a fixed list:

  • “/usr/bin”
  • “/usr/lib”
  • “/system/xbin”
  • “/dev”
  • “/var/tmp”
  • “/tmp”

and a filename from another list:

  • “setenvi“
  • “bridged“
  • “swapper“
  • “natd“
  • “lftpd“
  • “initenv“
  • “unix_upstart“
  • “mntctrd“
  • etc.

Putting these two items together creates the destination file path.

Make the 2nd Stage Persistent

Afterwards, the dropper makes sure that the second stage payload is executed and that it will remain persistent. It is unique in that it is remarkably thorough in how it achieves persistence. It uses at least six methods to make sure the file remains on the device and always runs. And, not just one method is executed – it runs all of them.

    1. Automatic execution via injected code into ~\.bashrc
    2. Automatic execution via “@reboot” clause in crontab
    3. Automatic execution as a “System Daemon” service via systemd
    4. Automatic execution via /etc/init and PATH. Once again, it calls itself “System Daemon”
    5. Automatic execution via modification of the SELinux Policy Management
    6. Automatic execution via /etc/inittab

And, finally, it executes the dropped inner ELF –  the second stage payload.

Analysis of the 2nd stage payload (bot)

The second stage payload is a full-fledged bot capable of executing commands from its master (CnC).  It also contains other features such as simple anti-debugging techniques, data exfiltration, multi-level encryption of communication, etc.

Furthermore, many functions found in the second stage are the same as in the first, making it  highly likely they are both created by the same author(s).

The code inside of the first stage payload is almost identical in all the versions. This is however not true in the case of the second stage where we find differences among the binaries for various hardware architectures. To describe the core functionality that can be found in most of the versions, we will once again take a look on x86 code found in the sample with SHA256 hash:  5c74bd2e20ef97e39e3c027f130c62f0cfdd6f6e008250b3c5c35ff9647f2abe.

Anti-Analysis Methods

The anti-analysis methods in this malware are not as advanced as we are accustomed to seeing in Windows or mobile malware, but they are improving.

  • It uses the simple anti-analysis method of a 60 seconds sleep() after execution, which probably tries to circumvent simple sandboxes.
  • Furthermore, it tries to randomize the process name via prctl(PR_SET_NAME) call to something like “\[[a-z]{12,17}\]” (regular expression) in order to avoid detection of blacklisted process names.
  • Finally, the authors are trying to make the analysis harder by stripping the symbols from executables. When we first downloaded the samples from the aforementioned server, they all contained symbols, which made their analysis easier. It is interesting to note that a few days later these files were replaced by their stripped versions. No other differences were found between these two versions, leading us to believe that the authors are taking continual action to further protect their executables against analysis.

CnC Servers

As we already said, this component is a bot that communicates with a master CnC server. The addresses of the CnCs are once again encrypted by the aforementioned XOR-based cipher. It seems that each Torii version contains 3 CnC addresses. The campaign that is currently running tries to get commands from CnC servers running at:


It tries to communicate with the first domain from the list and moves to the next one if it fails. In the case of failure, it also tries to resolve the domain name via Google DNS


Resolving CnC domain name


These three domain names have resolved to IP since September 15, 2018. Some other domains hosted on the same IP are also quite suspicious:

That so many strange looking domains are hosted at one IP address raises concern. Furthermore, the CnC domain names resolved to a different IP address ( before that.

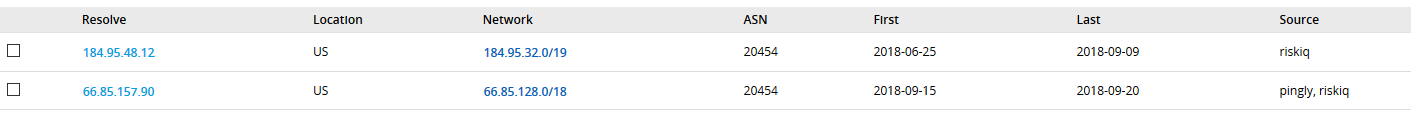

(History of resolving DNS names hardcoded in the sample)


Some more digging turned up another set of ELF samples belonging to Torii with three different CnC addresses:


They all resolved to the same IP ( in the past and, for example “” was using this IP since December 8, 2017. Therefore, we think that this strain has been in existence since at least December 2017 and quite possibly longer.

CnC Communication

The second stage communicates with these CnC servers via TCP port 443 as well as further encryption layers. It is interesting to note that it uses port 443 as a deception, as it doesn’t communicate using TLS but takes advantage of common use of this port for HTTPS traffic. Each message (including replies) forms a structure we call a “message envelope” and each envelope is AES-128 encrypted and there is a MD5 checksum of the content to ensure it hasn’t been modified or corrupted. Furthermore, each envelope contains a stream of messages where each message is encrypted by a simple XOR-based encryption, which is different than the one used to obfuscate the strings. It isn’t as strong as it looks as the decryption keys are included in the communication.

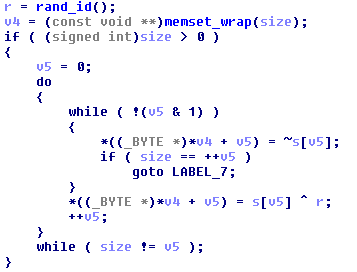

Algorithm used for encryption of CnC messages


Torii also exfiltrates the following information while connecting to a CnC server:

  • Hostname
  • Process ID
  • Path to second stage executable
  • All MAC addresses found in /sys/class/net/%interface_name%/address + its MD5 hash – this forms some kind of unique victim ID, allowing the bad actor to fingerprint and catalog devices more easily. It is also stored in local files with strange names such as GfmVZfJKWnCheFxEVAzvAMiZZGjfFoumtiJtntFkiJTmoSsLtSIvEtufBgkgugUOogJebQojzhYNaqyVKJqRcnWDtJlNPIdeOMKP, VFgKRiHQQcLhUZfvuRUqPKCtcrjmhtKcYQorAWhqAuZuWfQqymGnWiiZAsljnyNlocePAOHaKHvGoNXMZfByomZqEMbtkOEzQkQq, XAgHrWKSKyJktzLCMcEqYqfoeUBtgodeOjLgfvArTLeOkPSyRxqrpvFWRhRYvVcLeNtMKTdgFhwrypsRoIiDeObVxTTuOVfSkzgx, etc.
  • Details found by uname() call, including sysname, version, release, and machine.
  • Outputs of the following commands designed to gain yet more information on the target device:

id 2>/dev/null
uname -a 2>/dev/null
whoami 2>/dev/null
cat /proc/cpuinfo 2>/dev/null
cat /proc/meminfo 2>/dev/null
cat /proc/version 2>/dev/null
cat /proc/partitions 2>/dev/null
cat /etc/*release /etc/issue  2>/dev/null

CnC Commands

While analyzing the code, we’ve found that the bot component is communicating with the CnC with active polling in an endless loop, always asking its CnC whether there are any commands to execute. After receiving a command, it replies with the results of the command execution. Each message envelope has a value specifying which type of command it brings. The same value is used for reply. We have uncovered the following command types:


  • 0xBB32 Store a file from CnC to a local drive:
    • Receive:
      1. Filepath where to store content from CnC
      2. Content
      3. MD5 checksum of content
    • Reply:
      1. File path where the file was stored
      2. Error code
  • 0xA16D Receive value of timeout to be used for CnC polling:
    • Receive:
      1. DWORD with number of minutes to sleep between CnC contacts
    • Reply:
      1. Message with code 66


  • 0xAE35 Execute a given command in a desired shell interpreter and send outputs back to CnC:
    • Receive:
      1. Command to execute in shell (sh -c “exec COMMAND”)
      2. WORD with execution timeout in seconds (max 60 seconds)
      3. String with a path to shell interpreter (optional)
    • Reply:
      1. String with outputs (stdout + stderr) of command execution
  • 0xA863 Store a file from CnC to a given path, change its flags to “rwxr-xr-x” to make it executable and then execute it:
    • Receive:
      1. File path where to store content from CnC
      2. Content
      3. MD5 checksum of content
    • Reply:
      1. File path where the file was stored
      2. Return code from execution of that file
  • 0xE04B – Check that the given file exists on a local system and return its size:
    • Receive:
      1. Filepath to check
    • Reply:
      1. File path
      2. File size
  • 0xF28C Read N bytes from offset O of selected file F and send them to CnC:
    • Receive:
      1. File path to file (F) to read from
      2. QWORD offset (O) where to start reading
      3. DWORD number (N) of bytes to read
    • Reply:
      1. File content
      2. Offset
      3. Size of bytes read
      4. MD5 checksum of read content
  • 0xDEB7 Delete a specified file
    • Receive:
      1. Name of a file to delete
    • Reply:
      1. Error code
  • 0xC221 Download a file from the given URL
    • Receive:
      1. Path where to a store file
      2. URL
    • Reply:
      1. File path
      2. URL
  • 0xF76F – Get address of a new CnC server and start communication with it.
    • Receive:
      1. ?
      2. New domain name
      3. New port
      4. ?
    • Reply:
      1. Repeat the received information
  • 0x5B77, 0x73BF, 0xEBF0, and probably other codes Some kind of communication to ping or get a heartbeat on the target device to ensure the communication partner that the communication channel is working):
    • Receive:
      1. Everything received is ignored
    • Reply:
      1. Repeat the received information

Analysis of the sm_packed_agent

While we were investigating the server, we found another interesting binary we managed to get from the FTP server that is called “sm_packed_agent”. We don’t have any evidence that is has been used on the server, but its versatility suggests that it could be used to send any remote command desired to the target device. It contains a GO-written application packed using UPX when unpacked, it has a few interesting strings that suggests it has server-like capabilities:



Underneath, it uses the following 3rd party libraries:Code Reuse

Possible name of source code:


Some of these libraries are abusing a BSD licence, which requires redistribution of copyright notice. Apparently Torii’s authors don’t care about copyright infringement.


The functionality of the sm_agent is as follows:

  • Takes one parameter on cmdline -p with port number
  • Initializes crypto, loads TLS and keys + cert
  • Creates server and listening for TLS connection
  • Awaits commands encoded in BSON format
  • Command handler inside knows these commands:
    • 1: Monitor_GO_agent__Agent_GetSystemInfo
    • 2: Monitor_GO_agent__Agent_GetPerformanceMetrics
    • 7: Monitor_GO_agent__Agent_ExecCmdWithTimeout
      this command seems to be able to run any arbitrary OS command read from BSON payload.

TLS encryption, certificates and keys:

  • Agent uses ChaCha20-Poly1305 stream cipher for TLS
  • Keys and certs in the same directory
  • Self signed certificate of authority ca.crt with name Mayola Mednick
  • client.crt issued by ca.crt for Dorothea Gladding
  • server.crt + server.key issued by ca.crt for Graham Tudisco

Certificates are self-signed and obviously using fake names.

This  script is to kill any previous instances of start sm_packed_agent and run it on TCP port 45709 and re-run it again in case it fails.

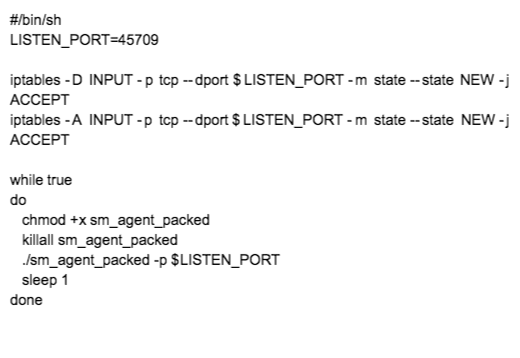

A script which runs and keeps running sm_packed_agent


It is not yet known how Torii authors are using this service, but it is incredibly versatile and could be used to run any command on the device. And because this application is written in GO, it can be easily recompiled to run on virtually any architecture. Taking into account that this file is running on a  malware distribution machine, it is quite possible that it is a backdoor or even a service to orchestrate multiple machines.

Analysis of Logs From the Server

Finally, we took a look at the logs we found for both the Nginx server and the FTP server. Such access log can help us understand how many clients actually were infected by Torii or tried to download it.

As we write this blog, Torii authors have already disabled FTP and Nginx logging (more on that below), but looking at the logs that are available, we can generate some simple statistics.

A total of 206 unique IPs connected to the server on September 7th, 8th, 19th, and 20th according to the logs on the server.

Access-2018-09-07.log – 54 unique IPs
Access-2018-09-08.log – 20
Access-2018-09-19.log – 189
Access-2018-09-20.log – 10

It looks like one IP connected to the server 1 056 393 times!

By looking into the logs, it seems that someone actually ran DirBuster-1.0-RC1, trying to figure out what is going on. Brute force DirBuster is used to guess directories/filenames on the web server and generates a large number of requests. It is quite unfortunate if this scan originated from a researcher as there are more elegant approaches in the case of a sophisticated malware like Torii.

By scanning the ports of IP, we can see that there are a few ports open:



On port 27655, there is an SSH banner which states:

“SSH-2.0-OpenSSH_7.4p1 Raspbian-10+deb9u3” It looks like this box is running Raspbian.  If you are behind this, write us.

Other logs that are available to us are FTP server logs.

There are a few clients that connected and downloaded some files that are not on the FTP server anymore:

Sat Sep  8 08:31:24 2018 1 6 /media/veracrypt1/nginx/md/zing.txt b _ o r md ftp 0 * c

According to logs we were able to analyze, a total of 592 unique clients were downloading files from this server over a period of a few days. It’s important to remember that once the target device receives the payload, it stops connecting to the download server and connects to the CnC server. Therefore, we are likely seeing a snapshot of new devices that were recruited into this botnet over the period of time for which we have log files.

Additionally, there are 8 clients that were using both the HTTP server and the FTP server, which could be the case if downloading using HTTP failed for some reason, or if Torii authors were testing functionality of the bash script or a server set up

We cannot speculate about what we do not have evidence for, but this server could be just one of a number of servers infecting new target devices, and only further investigation will reveal the true scope of this botnet. Given the level of sophistication of the malware we researched, it would seem likely that it is designed to map and control a large number of diverse devices.


Even though our investigation is continuing, it is clear that Torii is an example of the evolution of IoT malware, and that its sophistication is a level above anything we have seen before. Once it infects a device, not only does it send quite a lot of information about the machine it resides on to the CnC, but  by communicating with the CnC, it allows Torii authors to execute any code or deliver any payload to the infected device. This suggests that Torii could become a modular platform for future use. Also, because the payload itself is not scanning for other potential targets, it is quite stealthy on the network layer.
